The Northern Rivers Inclinometer Installation
Monitoring ground movement is a critical part of risk management on construction and infrastructure projects. At North Coast Drilling & Wicks, we provide professional inclinometer installation across the Northern Rivers, helping engineers and contractors track subsurface shifts over time.
Installed within boreholes, inclinometers detect changes in slope stability, embankments, retaining walls and more—alerting teams to potential issues before they become serious. We tailor every installation to the site, ensuring accuracy, longevity and compliance with design requirements. These systems are often installed alongside our piezometer installations, geotechnical drilling, and drilling rig operations to support full-scale ground monitoring and assessment.
With over 32 years of experience and specialised drilling capabilities, we deliver inclinometer installations that meet technical specs and tight schedules. To organise a quote or consultation, call
0401 380 986 and talk to our team today.
Track Movement. Prevent Failure.
Inclinometers are designed to measure horizontal displacement in the ground, helping project teams stay ahead of landslip risks, soil creep and other instability. We install inclinometer casing to precise depths using appropriate drilling methods and make sure each system is ready for regular readings and long-term performance.
Our installations support civil, mining, and environmental projects of all sizes.
- Ideal for slope stability & embankment monitoring
- Installed in boreholes using geotechnical drilling rigs
- Supports data collection for long-term analysis
Whether you need one inclinometer or an entire site network, we’ll make sure your monitoring systems are installed with care and precision. Reach out today
to book an installation or request a project quote.
Frequently Asked Questions
What is an inclinometer and why is it installed?
An inclinometer is an instrument used to measure lateral ground movement or deformation within slopes, embankments and retaining structures. It helps engineers detect and monitor ground displacement, ensuring stability and safety over time. Inclinometers are crucial in geotechnical projects where slope failure or structural tilting could pose risks to infrastructure and human safety. By tracking subsurface movements, they provide early warning of potential failures, allowing timely corrective action. Inclinometers consist of a casing installed in a vertical borehole and a probe that measures tilt at various depths, offering precise data on the magnitude and direction of ground movement.
How is an inclinometer installed?

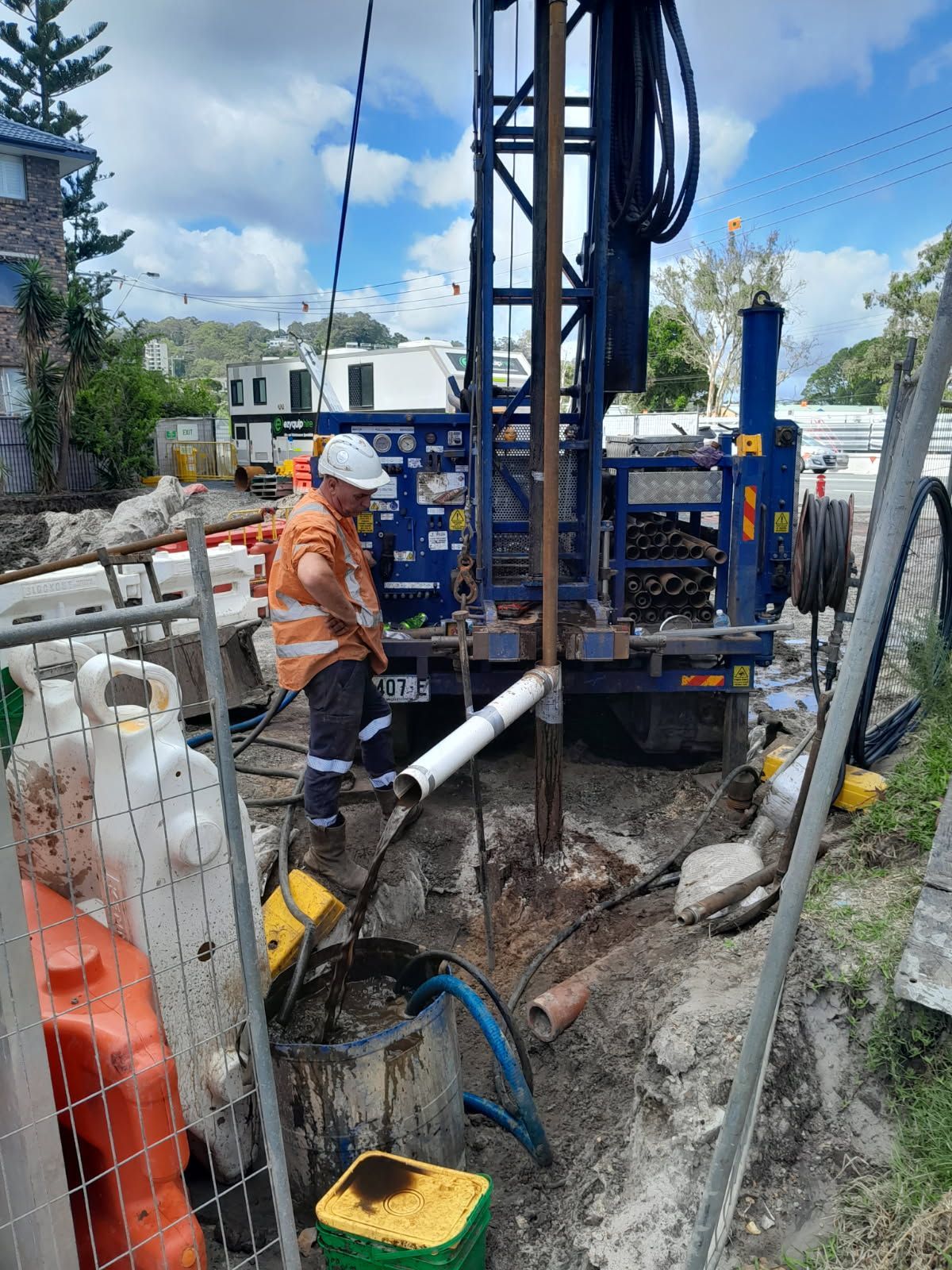

Installing an inclinometer involves drilling a vertical borehole to the depth of interest, typically using an auger or rotary rig. A specially designed inclinometer casing, featuring internal grooves to guide the probe, is then lowered into the borehole. The casing is carefully centralised and backfilled with grout or bentonite slurry to maintain stability and prevent voids. The top of the casing is sealed and fitted with a protective cap. Correct alignment of the casing is essential to ensure accurate measurements, so great care is taken to orient the grooves in the direction of expected ground movement before backfilling.
Where are inclinometers commonly used?
Inclinometers are widely used in projects involving slopes, embankments, retaining walls, tunnels and deep excavations. They are critical for monitoring landslides, slope stability near roads and railways, and the performance of retaining structures in urban construction. In mining and dam projects, inclinometers track deformation in tailings dams and embankments. They are also used in environmental monitoring to study soil movements in sensitive areas. By providing precise data on ground behaviour, inclinometers support the safe design, construction and maintenance of infrastructure, allowing engineers to detect movement trends early and take preventive measures if needed.
